M12 IE Connector PUR Drag Chain Green Dual Shield Ethernet Cable 4 Pin Connector

Product Categories
Kronz (guangzhou) Electronics Co., Ltd.
Contact Now

M12 IE Connector PUR Drag Chain Green Dual Shield Ethernet Cable 4 Pin Connector

  • 1
  • 2

Brand Name : KRONZ

Model Number : M1204DM-10-M1204DM/E331

Certification : CE

Place of Origin : Guangdong, China

MOQ : 50

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Name : IE Connector

Wire gauge : 2 x 2 x 0.25, shielded

Rated current : 1.5A

Standard : IEC 61076-2-101

Contact : M12 to M12 4 Pin

Waterproof : IP67

Cable : Blueish green

Contact Now

M12 IE Connector PUR Drag Chain Green Dual Shield Ethernet Cable 4 Pin Connector​

Product Description

Industrial M12 Connector IE Cable – Pre-assembled and shielded for Ethernet/IP, featuring both 4-pin and 8-pin variants with D/A/X coding flexibility.

M12 IE Connector PUR Drag Chain Green Dual Shield Ethernet Cable 4 Pin Connector

M12 IE Connector PUR Drag Chain Green Dual Shield Ethernet Cable 4 Pin Connector

Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

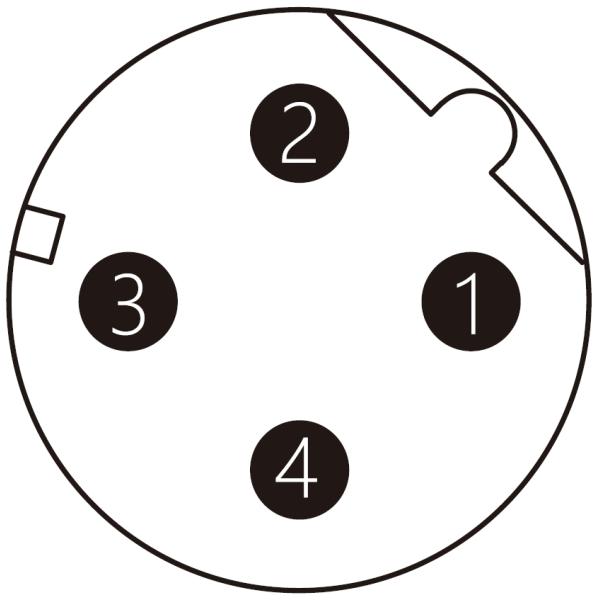

Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
M12 IE Connector PUR Drag Chain Green Dual Shield Ethernet Cable 4 Pin Connector

1 = WH/OR(+tx)
2 = WH/GH(+rx0
3 = OR(-tx)

4 = GN(-rx)

 D 1.5A 60V 2×2×0.14,shielded
(2×2×26AWG)
Blueish green,
PUR,drag chain
OD=6.2		 Straight 10M M1204DM-10-M1204DM/E331

M12 IE Connector PUR Drag Chain Green Dual Shield Ethernet Cable 4 Pin Connector

M12 IE Connector PUR Drag Chain Green Dual Shield Ethernet Cable 4 Pin Connector
